Description

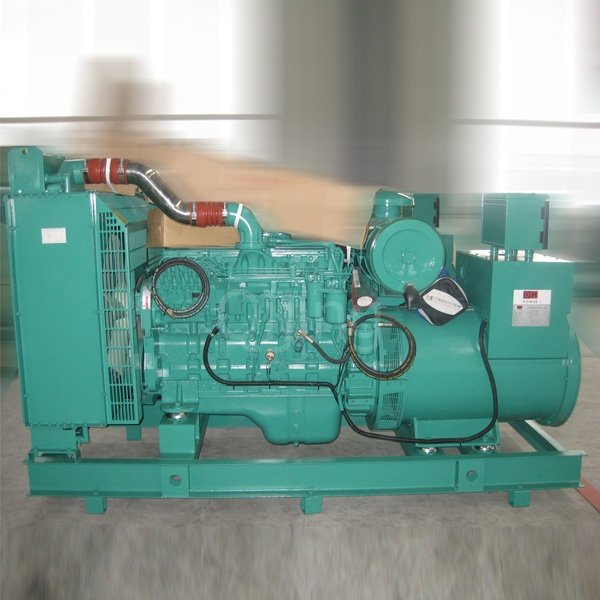

| General data of Cummins 6LTAA8.9-G2 Diesel Engine for Generator Set | |
| Engine Model | Cummins 6LTAA8.9-G2 |
| Type | 6 cylinder in line |
| Displacement | 8.9 L |
| Bore&Stroke | 114×145 mm |
| Dry Weight | 650 KG |
| Center of gravity from front face of block | 427 mm |
| Center of gravity above crankshaft centerline | 163 mm |
| Technical data of Cummins 6LTAA8.9-G2 Diesel Engine for Generator Set | |
| Aspiration | Turbocharged and Charge Air Cooled |
| Fuel System | BYC P7100 Pump/GAC |
| Fuel System | BYC P7100 Pump/SEGMA |
| Governor Regulation | ≤3% |
| Coolant capacity-engine only | 11.1 litre |
| Idle speed | 800-1000 RPM |
| Frictional loss power/1500rpm | 26 KW |
| Frictional loss power/1800rpm | 35 KW |
| Compression Ratio | 16.6:1 |
| Piston Speed/1500rpm | 7.3 m/sec |
| Piston Speed/1800rpm | 8.7 m/sec |
| Firing Order | 1-5-3-6-2-4 |
| Performance Date of Cummins 6LTAA8.9-G2 Diesel Engine for Generator Set | |
| Rated Output/Speed(1500rpm) | 220KW/295HP |
| Standby Output/Speed(1500rpm) | 240KW/322HP |
| Continuous Output/Speed(1500rpm) | 180KW/241HP |
| Rated Output/Speed(1800rpm) | 235KW/315HP |
| Standby Output/Speed(1800rpm) | 258KW/346HP |
| Continuous Output/Speed(1800rpm) | 190KW/255HP |
| Fuel Consumption/Rated output(1500rpm) | 199 g/KW.h |
| Fuel Consumption/Standby output(1500rpm) | 197 g/KW.h |
| Fuel Consumption/Continuous output(1500rpm) | 196 g/KW.h |
| Fuel Consumption/Rated output(1800rpm) | 210 g/KW.h |
| Fuel Consumption/Standby output(1800rpm) | 208 g/KW.h |
| Fuel Consumption/Continuous output(1800rpm) | 206 g/KW.h |
Standard Conditions: Data shown above are based on :
- Engine operating with fuel system, water pump, lubricating oil pump, air cleaner & exhaust silencer, not included are battery charging alternator, fan and optional driven component
- Engine operating with diesel fuel corresponding to grade No.2DperASTM D975
- ISO-3046, Part 1, Standard Reference Conditions of:29.53 in.Hg. [100 kPa] barometric pressure (361ft.[110m] altitude), 25 degree Celsius air temperature and a relative humidity of 30%
The above is general technical information of Cummins 6LTAA8.9-G2 diesel engine for generator set. It is also for us to supply the Cummins 6LTAA8.9-G2 genuine engine parts and Cummins diesel generator set of this engine.
Remarks:
(1) If you need the other engine except 6LTAA8.9-G2 , then the Cummins 4B, 6B, 6C, 6L, QSB, QSC, QSL, ISL, ISB, ISD, QSM11, ISM11, M11, NTA855, KTA19, KTA38 and KTA50 engine be your choice, please further contact our sales.
(2) We can provide the diesel generator set for both open type and silent with enclosure, together with the generator and control panel. If you required the Cummins 6LTAA8.9-G2 engine parts, we also can be your help.
(3) The above diesel engine 6LTAA8.9-G2 is from Cummins DCEC factory, which is used for the generator set, we also can supply this engine for the marine application.
(4) If the engine details you need are not in our above list, please further contact us to check for you. Maybe some information are not updated.
