Description

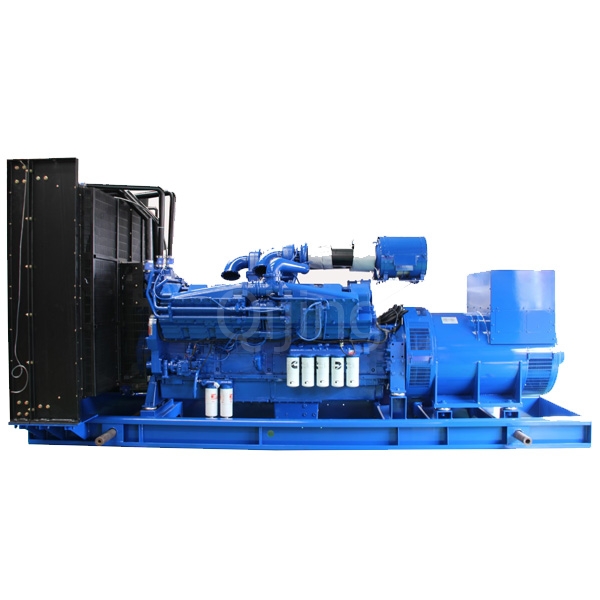

Open type cummins 1500 kva diesel generator & 1200kw onan cummins diesel generator from China, for emergency usage in supermarket, shopping mall, office building, suitable for Germany, France, USA and other western countries.
Technical specifications of cummins onan KTA50-G3 1200kw 1500 kva diesel generator :
| Generator set | Model No. | 1200GF-C |
| Rated power | 1200KW /1500KVA |
| Standby power | 1320KW/1650KVA |
| Output voltage | 230/400V |
| Rated speed (r/min.) | 1500 |
| Noise level | 70-75 dB ( silent type ) / 90-110 db ( open type) |
| Power factor | COSΦ=0.8（lagging） |
| Phase/wires | 3 phase 4 wires |
| Start mode | Electric |
| Fuel consumption | 205g/kw.h @ 100% loaded |
| Rated currency | 2160 amps |
| Protection | Low oil-pressure, High water temperature, Over-speed, Over-current. |
| Dimension | 5340x2100x2332 mm |
| Gross weight | 9500 kgs |
| Engine | Brand | Cummins |
| Model | KTA50-GS8 |
| Original: | Manufactured by Chongqing Cummins Engine Corporation |
| Cylinders | 16 |
| Fuel | 0# light diesel |
| Cooling | Low Temperature After cooling |
| Overload | 110% |
| Engine Power | 1287kw / 1608.75kva |
| Start mode | DC24V electric start |
| Cylinders Layout | 16V |
| Displacement | 50.3 L |
| Speed-Governing | Electric |
| Steady Speed Droop | ≤1% |
| Alternator | Brand | Stamford |
| Model | PI734C |
| Protection | IP23 |
| Frequency fluctuation | ≤±0.5 % |
| Voltage fluctuation | ≤±0.5 % |
| Power | 1240kw / 1550kva |
| Original | Manufactured by Cummins Generator Technologies China |
| Rated voltage | 230/400 V |
| Frequency regulation | ≤±0.5 %（stable） |
| Voltage control | AVR |
